10 Ton Rail Guided Battery Powered Electric Transfer Trolley for Industrial Warehouse Transport

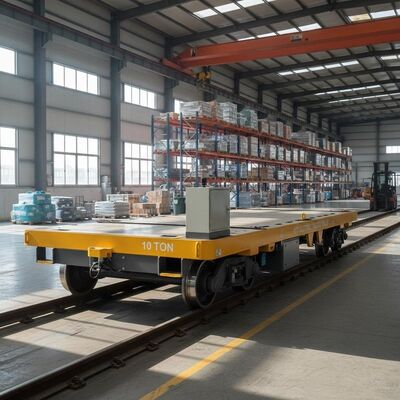

Grande immagine : 10 Ton Rail Guided Battery Powered Electric Transfer Trolley for Industrial Warehouse Transport

Dettagli:

Luogo di origine:	Macchinario Co., srl diCina-Wuxi Jinqiu
Marca:	Jinqiu
Certificazione:	CE and CQC
Numero di modello:	KPX10 con telaio a U

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1 insieme
Prezzo:	USD or RMB
Imballaggi particolari:	struttura d'acciaio del metallo
Tempi di consegna:	55-60 giorni
Termini di pagamento:	L/C, T/T
Capacità di alimentazione:	150 pezzi al mese

Contatto

Descrizione di prodotto dettagliata

Energia:	Batteria	Utilizzo:	Industria, utensili, carichi pesanti, trasferimento merci
Capacità di carico:	10 tonnellate	Dimensioni del tavolo del carrello:	6000x1300x550
Velocità di trasferimento:	30 m/min	Ruota:	Quattro ruote
Nome del prodotto:	carrello di trasferimento elettrico piatto, carrello industriale alimentato a batteria con piastra m
Evidenziare:	10 ton electric transfer trolley , rail guided battery powered trolley , industrial warehouse transport trolley

10 Ton Rail Guided Battery Transfer Cart for KPX Electric Transfer Trolley

Product Overview

The KPX 10 Ton Rail Guided Battery Transfer Cart is a high-performance industrial material handling system designed for steel coil, pipe, and heavy component transport. Powered by a 36V battery system and driven by an electric motor reducer, this rail-mounted trolley ensures stable, safe, and efficient movement across factory production lines.

This model is widely adopted in steel processing plants, warehouse logistics centers, and heavy manufacturing facilities where precision handling and load safety are critical. With a reinforced frame structure and dual control system, it significantly improves operational efficiency while reducing manual handling risks.

Industrial Challenges

Steel coils and pipes are too heavy for manual handling
Forklift transport is unstable for long steel products
Crane systems are not suitable for continuous horizontal transport
Production lines suffer delays due to slow logistics flow
Safety risks increase in congested workshop environments

These challenges reduce productivity and increase operational costs.

Solution

Rail-guided movement ensures straight-line stability
Battery-powered operation eliminates cable restrictions
Heavy-duty chassis supports long-term high-load usage
U-frame or customized fixtures secure steel coils and pipes
Dual control system improves operator flexibility
Emergency braking and alarm systems enhance workplace safety

It replaces traditional forklift and crane dependency with a continuous, automated transport system.

Technical Specifications

Item	Parameter
Model	KPX 10
Load Capacity	10 Ton
Platform Size	6000 × 1300 × 550 mm
Working Speed	30 m/min
Wheel Diameter	400 mm × 4
Rail Distance	840 mm (+0/-3 mm)
Shaft Distance	3400 mm
Motor	XQ-1.5
Power	1.5 kW
Battery	36V / 210Ah
Control System	Remote + pendant control
Weight	3 Ton
Safety System	Alarm + emergency stop + overload protection

Applications

Steel coil manufacturing plants
Pipe production workshops
Heavy equipment assembly lines
Metal fabrication industries
Warehouse logistics systems
Automotive parts manufacturing
Energy and infrastructure projects

It is especially effective for heavy steel coil logistics and horizontal transfer between production stations.

Operation Process

Battery system supplies DC power to drive unit
Motor transmits power to reducer and wheel sets
Rail guidance ensures directional stability
Operator controls movement via remote or pendant
Load is secured using U-frame fixtures
Electric braking ensures precise stopping
Alarm system activates during movement for safety

The system ensures controlled, repeatable, and safe industrial transport.

Selection Guidelines

When selecting a rail transfer cart, evaluate:

Load type (coil, pipe, mold, machinery)
Operating distance and frequency
Indoor or outdoor usage conditions
Rail layout and workshop design
Required safety level and automation
Power system preference (battery vs cable)

For steel coil handling, reinforced frames and anti-slip fixtures are recommended.

Frequently Asked Questions

Can this transfer cart handle steel coils safely?

Yes, with customized fixtures such as V-frame or U-frame supports, it ensures stable coil transport.

What is the advantage of battery power?

It eliminates cable restrictions and allows flexible movement across production areas.

Is the system suitable for long-distance transport?

Yes, it is designed for medium to long-distance industrial logistics on rail systems.

Can speed be adjusted?

Yes, the working speed can be customized depending on production requirements.

What industries commonly use this equipment?

Steel, metallurgy, automotive, machinery manufacturing, and logistics industries.
